TLP2116(F) - Toshiba

Description: Toshiba TLP2116(F) DC Input Transistor Output Dual Optocoupler, Surface Mount, 8-Pin SO

Download TLP2116(F) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

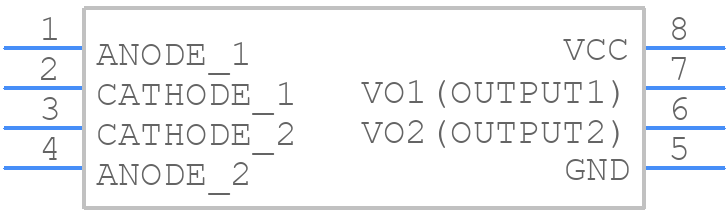

TLP2116(F) - Toshiba - PCB symbol
click to zoom
PCB Footprints
TLP2116(F) - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - 11-5K1S_2022
click to zoom
3D Models
TLP2116(F) - Toshiba - 3D model - Small Outline Packages - 11-5K1S_2022
click to zoom

TLP2116(F) Details

  • Manufacturer Part Number:

    TLP2116(F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOP-8

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SEPARATE, 2 CHANNELS

  • Data Rate-Nom:

    15 MBps

  • Forward Current-Max:

    0.02 A

  • Isolation Voltage-Max:

    2500 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    2

  • Number of Functions:

    2

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.04 W

  • Response Time-Nom:

    1.5e-8 ns

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5.5 V

  • Surface Mount:

    YES

TLP2116(F) Frequently Asked Questions (FAQs)

  • A good PCB layout for the TLP2116(F) involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 0.1uF bypass capacitor between VCC and GND pins.
  • To ensure proper biasing, connect the VCC pin to a stable 5V power supply, and the GND pin to a solid ground plane. The input voltage (VIN) should be within the recommended range of 4.5V to 5.5V. Also, ensure that the input signal is properly terminated and has a low impedance.
  • The TLP2116(F) can support data rates up to 10 Mbps, making it suitable for high-speed digital communication applications.
  • The TLP2116(F) has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures when handling the device. Use an anti-static wrist strap or mat, and avoid touching the device's pins or leads.
  • The TLP2116(F) is rated for operation up to 85°C, but it's recommended to derate the device's performance at higher temperatures. Consult the datasheet for specific temperature-related derating information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLP2116(F) Overview

Use the download button to access the TLP2116(F) schematic symbol, PCB footprint, and 3D model.
