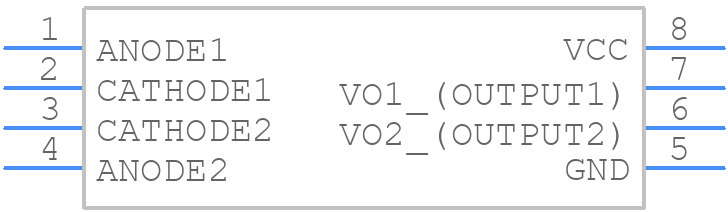

TLP2160(TP,F) - Toshiba

TLP2160(TP,F) Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal performance of the TLP2160?
  A good PCB layout for the TLP2160 involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 0.1uF bypass capacitor between the VCC and GND pins.
• How do I ensure the TLP2160 is properly powered on and off?
  To ensure proper power-on and power-off, it's recommended to use a soft-start circuit to slowly ramp up the input voltage, and to add a power-on reset circuit to ensure the device is fully powered on before enabling the output.
• What is the maximum allowable voltage on the input pins?
  The maximum allowable voltage on the input pins of the TLP2160 is 7V, exceeding which may cause damage to the device. It's recommended to use voltage limiting resistors or a voltage regulator to ensure the input voltage stays within the recommended range.
• How do I handle ESD protection for the TLP2160?
  To handle ESD protection for the TLP2160, it's recommended to use ESD protection diodes or a TVS (Transient Voltage Suppressor) device on the input pins, and to follow proper PCB design and handling practices to minimize the risk of ESD damage.
• What is the recommended operating temperature range for the TLP2160?
  The recommended operating temperature range for the TLP2160 is -40°C to 85°C. Operating the device outside this range may affect its performance and reliability.
