TLP2200(F) - Toshiba

Description: Toshiba, TLP2200(F) AC Input IC Output Optocoupler, Through Hole, 8-Pin DIP

Download TLP2200(F) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

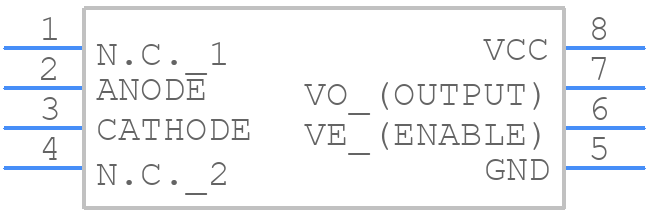

TLP2200(F) - Toshiba - PCB symbol
click to zoom
PCB Footprints
TLP2200(F) - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 11-10C4S (8PDIP)
click to zoom
3D Models
TLP2200(F) - Toshiba - 3D model - Dual-In-Line Packages - 11-10C4S (8PDIP)
click to zoom

TLP2200(F) Details

  • Manufacturer Part Number:

    TLP2200(F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    LEAD FREE, 11-10C4, DIP-8

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SINGLE

  • Data Rate-Nom:

    2.5 MBps

  • Forward Current-Max:

    0.01 A

  • Isolation Voltage-Max:

    2500 V

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • On-State Current-Max:

    0.025 A

  • Operating Temperature-Max:

    85 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Response Time-Nom:

    2.35e-7 ns

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    NO

TLP2200(F) Frequently Asked Questions (FAQs)

  • A good PCB layout for the TLP2200(F) involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the optocoupler to minimize noise and EMI.
  • To ensure reliable operation in high-temperature environments, ensure that the device is operated within its recommended temperature range, use a heat sink if necessary, and follow proper thermal design guidelines.
  • The maximum allowable voltage for the TLP2200(F) input is 5.5V, exceeding which may cause damage to the device.
  • Yes, the TLP2200(F) is suitable for high-frequency applications up to 10 Mbps, but ensure that the PCB layout and component selection are optimized for high-frequency operation.
  • To troubleshoot issues with the TLP2200(F) not turning on or off correctly, check the input voltage, ensure proper connection of the input and output pins, and verify that the device is not damaged or overheated.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLP2200(F) Overview

Use the download button to access the TLP2200(F) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP22, or try a keyword search, such as Optocoupler
