TLP2270(TP4,E - Toshiba

Description: High Speed Optocouplers PHOTOCOUPLER GaAℓAs Infrared LED & Photo IC

Download TLP2270(TP4,E Model

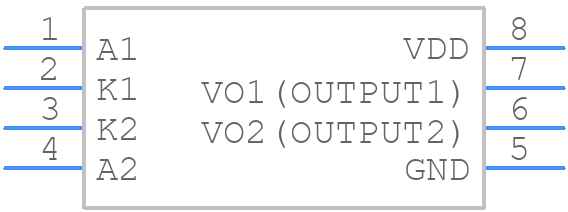

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLP2270(TP4,E - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - 11-6B1A
click to zoom
3D Models
TLP2270(TP4,E - Toshiba  - 3D model - Small Outline Packages - 11-6B1A
click to zoom

TLP2270(TP4,E Details

  • Manufacturer Part Number:

    TLP2270(TP4,E

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    9

  • Additional Feature:

    UL APPROVED

  • Configuration:

    SEPARATE, 2 CHANNELS

  • Data Rate-Nom:

    20 MBps

  • Forward Current-Max:

    0.008 A

  • Isolation Voltage-Max:

    5000 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    2

  • Number of Functions:

    2

  • On-State Current-Max:

    0.01 A

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Packing Method:

    TAPE

  • Response Time-Nom:

    1.3e-9 ns

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

TLP2270(TP4,E Frequently Asked Questions (FAQs)

  • A good PCB layout for the TLP2270 involves keeping the input and output traces separate, using a ground plane, and minimizing the length of the traces to reduce electromagnetic interference (EMI).
  • To ensure reliable operation in high-temperature environments, it is recommended to derate the output current and voltage according to the temperature derating curve provided in the datasheet, and to ensure good thermal management, such as using a heat sink or thermal pad.
  • The maximum cable length that can be driven by the TLP2270 depends on the specific application and the type of cable used. As a general guideline, the TLP2270 can drive cables up to 100 meters long, but this may vary depending on the specific use case.
  • To protect the TLP2270 from EOS and ESD, it is recommended to use a TVS (transient voltage suppressor) diode or a zener diode to clamp the voltage, and to follow proper handling and storage procedures to prevent ESD damage.
  • The recommended input voltage range for the TLP2270 is 3.0 V to 5.5 V, but it can operate down to 2.7 V with reduced performance. Operating the device outside of this range may affect its reliability and performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLP2270(TP4,E Overview

Use the download button to access the TLP2270(TP4,E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP22, or try a keyword search, such as Optocoupler
