TLP2304(TPR,E - Toshiba

Description: High Speed Optocouplers High speed photocoupler; 5pin SO6; RoHS; T&R

Download TLP2304(TPR,E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

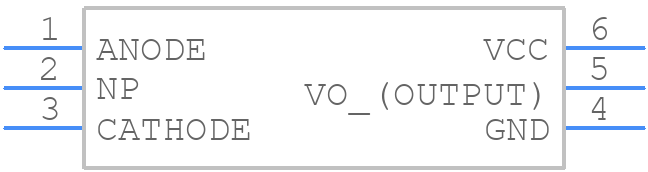

Symbol
TLP2304(TPR,E - Toshiba - PCB symbol
click to zoom
PCB Footprints
TLP2304(TPR,E - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - 5pin SO6-2
click to zoom
3D Models
TLP2304(TPR,E - Toshiba - 3D model - Small Outline Packages - 5pin SO6-2
click to zoom

TLP2304(TPR,E Details

  • Manufacturer Part Number:

    TLP2304(TPR,E

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-6/5

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    16 Weeks

  • Date Of Intro:

    2018-09-04

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    8

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SINGLE

  • Data Rate-Nom:

    1 MBps

  • Forward Current-Max:

    0.025 A

  • Isolation Voltage-Max:

    3750 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • On-State Current-Max:

    0.015 A

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Packing Method:

    TR, 13 INCH

  • Response Time-Max:

    5.5e-7 s

  • Response Time-Nom:

    3.6e-7 ns

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

TLP2304(TPR,E Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TLP2304 is 3.0V to 5.5V.
  • To ensure reliable operation in high-temperature environments, it is recommended to derate the output current and voltage according to the temperature derating curve provided in the datasheet.
  • The maximum allowable power dissipation for the TLP2304 is 500mW. Exceeding this limit may cause the device to overheat and malfunction.
  • No, the TLP2304 is a transistor array and not a voltage regulator. It is designed to provide high-current switching capabilities, not to regulate voltage.
  • To protect the TLP2304 from ESD, it is recommended to handle the device with anti-static precautions, such as using an anti-static wrist strap or mat, and storing the device in an anti-static bag or container.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLP2304(TPR,E Overview

Use the download button to access the TLP2304(TPR,E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP23, or try a keyword search, such as Optocoupler
