TLP2309(TPL,E(T - Toshiba

Description: OPTOCOUPLER TRANSISTOR, 5V, 0.025A, SMD,Operating temperature: -40 to 110 ,Supply voltage: 3.3 V / 5 V,Package: SO6

Download TLP2309(TPL,E(T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

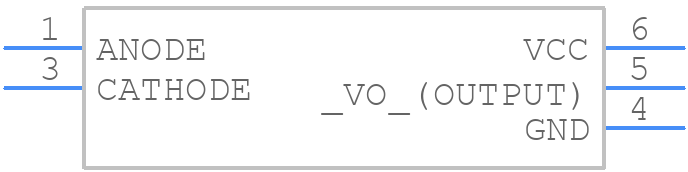

Symbol
TLP2309(TPL,E(T - Toshiba - PCB symbol
click to zoom
PCB Footprints
TLP2309(TPL,E(T - Toshiba PCB footprint - Other - Other - SO6_2025-1.2
click to zoom

TLP2309(TPL,E(T Details

  • Manufacturer Part Number:

    TLP2309(TPL,E(T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-6/5

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    8

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SINGLE

  • Data Rate-Nom:

    1 MBps

  • Forward Current-Max:

    0.025 A

  • Isolation Voltage-Max:

    3750 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • On-State Current-Max:

    0.008 A

  • Operating Temperature-Max:

    110 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Packing Method:

    TAPE

  • Response Time-Max:

    0.000001 s

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

TLP2309(TPL,E(T Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TLP2309 is 3.3V to 5V.
  • To ensure reliable operation in high-temperature environments, it is recommended to derate the output current and voltage according to the thermal derating curve provided in the datasheet.
  • The maximum allowable current for the TLP2309 is 150mA per channel.
  • The TLP2309 has built-in ESD protection, but it is still recommended to follow proper ESD handling procedures when handling the device to prevent damage.
  • Yes, the TLP2309 can be used in switching power supply applications, but it is recommended to ensure that the device is properly bypassed and filtered to prevent noise and oscillation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLP2309(TPL,E(T Overview

Use the download button to access the TLP2309(TPL,E(T schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP23, or try a keyword search, such as Optocoupler
