TLP2345 footprint, schematic symbol and 3D model by Toshiba

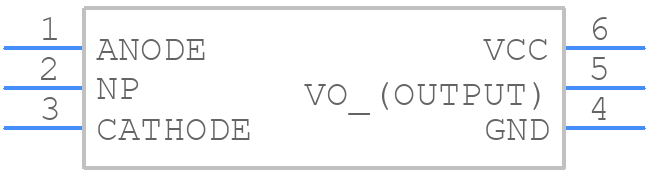

Symbol

PCB Footprints

3D Models

TLP2345 Details

The recommended operating temperature range for the TLP2345 is -40°C to 100°C.
To ensure reliable operation in high-temperature environments, it is recommended to derate the device's current and voltage ratings according to the temperature derating curve provided in the datasheet.
The maximum allowable voltage for the TLP2345 is 5.5V, but it is recommended to operate the device at a voltage below 5V to ensure reliable operation.
The correct resistor value for the input LED of the TLP2345 can be calculated using the formula: R = (Vcc - Vf) / If, where Vcc is the supply voltage, Vf is the forward voltage of the LED, and If is the desired forward current.
The typical propagation delay time for the TLP2345 is around 10-20 μs, but this can vary depending on the specific application and operating conditions.

Community Provided

System Verified

Community Approved

Use the download button to access the TLP2345 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like TLP23, or try a keyword search, such as Optocoupler
