TLP2355(TPL,E footprint, schematic symbol and 3D model by Toshiba

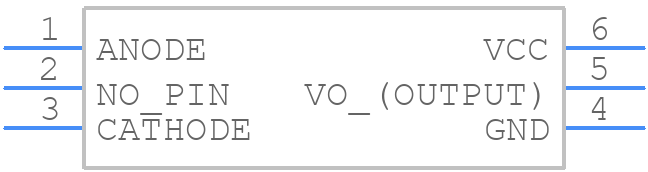

Symbol

PCB Footprints

3D Models

TLP2355(TPL,E Details

A good PCB layout for the TLP2355 involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 0.1uF decoupling capacitor between the VCC and GND pins.
To ensure proper power-on and power-off of the TLP2355, it's recommended to use a soft-start circuit to limit the inrush current during power-on. Additionally, a power-on reset (POR) circuit can be used to ensure the device is properly reset during power-on.
The maximum allowable voltage on the input pins of the TLP2355 is 5.5V. Exceeding this voltage may cause damage to the device.
To handle ESD protection for the TLP2355, it's recommended to use ESD protection devices such as TVS diodes or ESD arrays on the input and output lines. Additionally, proper PCB design and layout practices can help reduce the risk of ESD damage.
The recommended operating temperature range for the TLP2355 is -40°C to 85°C. Operating the device outside of this range may affect its performance and reliability.

Expert Contribution

System Verified

Community Approved

Use the download button to access the TLP2355(TPL,E schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like TLP23, or try a keyword search, such as Optocoupler
