A good PCB layout for the TLP2358 involves keeping the input and output traces short and away from each other, using a ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a shielded cable for the input and output connections.
To ensure proper biasing, connect the VCC pin to a stable 5V power supply, and the GND pin to a solid ground plane. Also, make sure the input voltage is within the recommended range of 0.5V to 5.5V, and the output load is within the specified range of 1kΩ to 10kΩ.
The TLP2358 supports data transfer rates up to 20 Mbps, making it suitable for high-speed applications such as industrial automation, medical devices, and automotive systems.
The TLP2358 has built-in common-mode noise rejection and electromagnetic interference (EMI) filtering, which helps to minimize the effects of noise and interference on the signal transmission. Additionally, the device's differential output stage provides further noise immunity.
The TLP2358 operates over a temperature range of -40°C to 125°C, making it suitable for use in a wide range of industrial and automotive applications.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLP2358 Overview

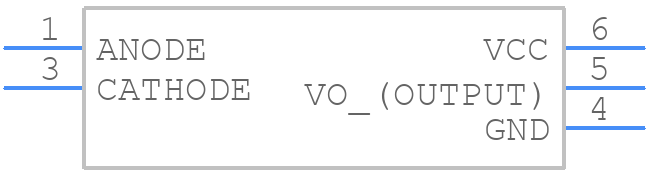

Use the download button to access the TLP2358 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP23,
or try a keyword search, such as Optocoupler
