A good PCB layout for the TLP2361 involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 0.1uF decoupling capacitor between VCC and GND.
To ensure proper power-on and power-off of the TLP2361, it's recommended to use a power-up sequence where VCC is applied before the input signal, and to use a power-down sequence where the input signal is removed before VCC is removed.
The maximum allowable voltage on the input pins of the TLP2361 is 5.5V, which is the absolute maximum rating. However, it's recommended to keep the input voltage below 5V to ensure reliable operation.
The TLP2361 is rated for operation up to 85°C, but it's recommended to derate the device's performance at higher temperatures. For high-temperature applications, it's recommended to use a heat sink or to consider a different device with a higher temperature rating.
To troubleshoot issues with the TLP2361, start by checking the power supply voltage, input signal integrity, and output loading. Use an oscilloscope to verify the input and output waveforms, and check for any signs of overheating or physical damage to the device.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLP2361(V4,E Overview

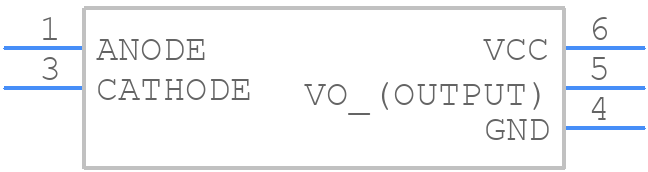

Use the download button to access the TLP2361(V4,E schematic symbol, PCB footprint, and 3D model.
