A good PCB layout for the TLP2363 should ensure that the input and output pins are separated as much as possible to minimize capacitive coupling. Additionally, the PCB should have a solid ground plane and a separate power plane for the VCC pin. The layout should also minimize the length of the traces connected to the input and output pins to reduce signal reflections.
The TLP2363 has a specific power-up and power-down sequence that should be followed to ensure proper operation. The VCC pin should be powered up before the input signal is applied, and the input signal should be removed before the VCC pin is powered down. This sequence helps prevent latch-up and ensures reliable operation.
The maximum cable length that can be driven by the TLP2363 depends on the specific application and the type of cable used. However, as a general rule, the TLP2363 can drive cables up to 100 meters long at a data rate of 100 Mbps. For longer cables or higher data rates, repeaters or amplifiers may be necessary.
To ensure EMC with the TLP2363, it is recommended to use a shielded cable and to keep the cable away from noise sources such as motors, relays, and other high-frequency devices. Additionally, the PCB should be designed with EMC in mind, using techniques such as grounding, shielding, and filtering to minimize electromagnetic radiation.
The TLP2363 has an operating temperature range of -40°C to 85°C. However, the device may not operate within specifications at the extreme ends of this range, and the user should consult the datasheet for specific temperature-related performance characteristics.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLP2363(V4-TPL,E Overview

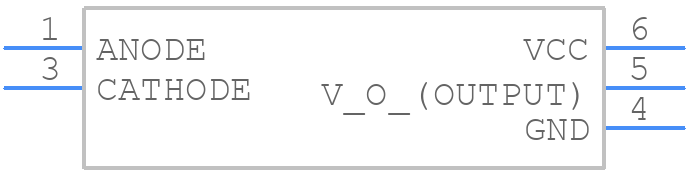

Use the download button to access the TLP2363(V4-TPL,E schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP23,
or try a keyword search, such as Optocoupler
