A good PCB layout for the TLP2366(E) involves keeping the input and output traces short and separate, using a solid ground plane, and placing a 0.1uF bypass capacitor close to the VCC pin. Additionally, it's recommended to use a 50Ω transmission line for the output signal.
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design guidelines, such as providing adequate heat sinking, using a thermally conductive PCB material, and keeping the junction temperature below 125°C. Additionally, consider using a thermal pad or heat sink on the TLP2366(E) package.
The maximum cable length supported by the TLP2366(E) depends on the specific application and signal frequency. As a general guideline, the TLP2366(E) can support cable lengths up to 10 meters at 100 Mbps and 3 meters at 400 Mbps. However, it's recommended to consult with a Toshiba representative or perform signal integrity simulations to determine the optimal cable length for your specific application.
Yes, the TLP2366(E) can be used in redundant or duplicated systems. However, it's essential to ensure that the devices are properly synchronized and that the output signals are properly isolated to prevent signal contention. Additionally, consider using a redundant power supply and implementing a fail-safe mechanism to ensure system reliability.
To troubleshoot common issues with the TLP2366(E), start by checking the PCB layout and signal integrity, ensuring that the input and output signals are properly terminated and that there is no signal reflection or crosstalk. Next, verify that the power supply is stable and within the recommended operating range. If issues persist, consider using an oscilloscope to analyze the signal waveform and identify any anomalies.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLP2366(E(T Overview

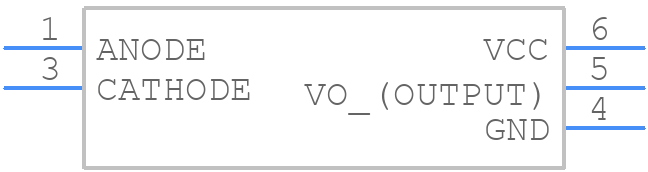

Use the download button to access the TLP2366(E(T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP23,
or try a keyword search, such as Optocoupler
