A good PCB layout for the TLP2367(E) involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 0.1uF decoupling capacitor between the VCC and GND pins.
The TLP2367(E) requires a single 3.3V or 5V power supply. It's recommended to power the device after the input signals are stable, and to ensure that the power supply is stable before applying input signals. A soft-start circuit can be used to ensure a smooth power-up sequence.
The maximum cable length recommended for use with the TLP2367(E) is 10 meters, and it's recommended to use a shielded twisted-pair cable with a characteristic impedance of 100 ohms to minimize signal degradation and electromagnetic interference.
To troubleshoot common issues with the TLP2367(E), check the power supply voltage, signal integrity, and PCB layout. Verify that the input signals are within the recommended voltage range and that the output signals are not overloaded. Use an oscilloscope to check for signal distortion or data corruption, and ensure that the device is properly terminated.
Yes, the TLP2367(E) has a maximum junction temperature of 150°C. To ensure reliable operation, it's recommended to keep the device temperature below 85°C. Use a heat sink or thermal pad if necessary, and ensure good airflow around the device.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLP2367(E Overview

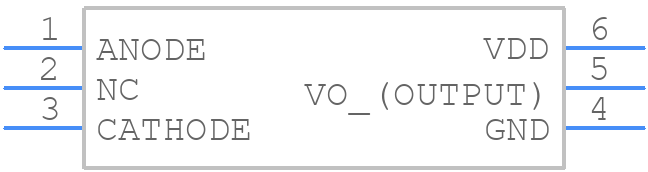

Use the download button to access the TLP2367(E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP23,
or try a keyword search, such as Optocoupler
