TLP2367(TPR,E - Toshiba

Description: High Speed Optocouplers Photo-IC 2.7 to 5.5V 3750Vrms 2.5mA 50Mb

Download TLP2367(TPR,E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

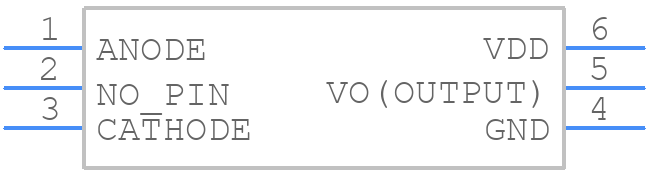

Symbol
TLP2367(TPR,E - Toshiba - PCB symbol
click to zoom
PCB Footprints
TLP2367(TPR,E - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - 11-4L1S
click to zoom
3D Models
TLP2367(TPR,E - Toshiba - 3D model - Small Outline Packages - 11-4L1S
click to zoom

TLP2367(TPR,E Details

  • Manufacturer Part Number:

    TLP2367(TPR,E

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-6/5

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    9

  • Additional Feature:

    OPEN COLLECTOR, UL APPROVED

  • Configuration:

    SINGLE

  • Data Rate-Nom:

    50 MBps

  • Forward Current-Max:

    0.015 A

  • Isolation Voltage-Max:

    3750 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • On-State Current-Max:

    0.01 A

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Packing Method:

    TR, EMBOSSED PLASTIC, 13 INCH

  • Response Time-Nom:

    2e-9 ns

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

TLP2367(TPR,E Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TLP2367 is 4.5V to 5.5V.
  • To ensure reliable operation in high-temperature environments, it is recommended to derate the output current and voltage according to the thermal derating curve provided in the datasheet.
  • The maximum allowable power dissipation for the TLP2367 is 1.5W. Exceeding this limit may cause the device to overheat and fail.
  • Yes, the TLP2367 can be used as a level translator for high-speed signals up to 100 Mbps. However, it is recommended to use a series resistor and a capacitor to filter out high-frequency noise and ensure signal integrity.
  • The TLP2367 has built-in ESD protection, but it is still recommended to follow proper ESD handling procedures when handling the device, such as using an ESD wrist strap or mat, and storing the device in an ESD-safe environment.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLP2367(TPR,E Overview

Use the download button to access the TLP2367(TPR,E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP23, or try a keyword search, such as Optocoupler
