TLP2368(E(O - Toshiba

Description: Photocoupler, Open Collector Ouput, 20MBPS

Download TLP2368(E(O Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

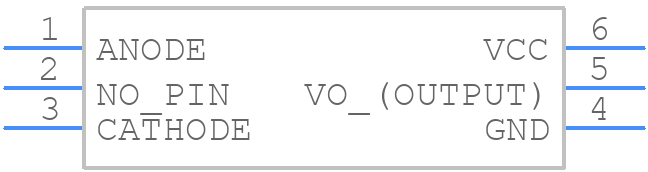

Symbol
TLP2368(E(O - Toshiba - PCB symbol
click to zoom
PCB Footprints
TLP2368(E(O - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - 11-4L1S
click to zoom
3D Models
TLP2368(E(O - Toshiba - 3D model - Small Outline Packages - 11-4L1S
click to zoom

TLP2368(E(O Details

  • Manufacturer Part Number:

    TLP2368(E(O

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-6/5

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    9

  • Additional Feature:

    UL APPROVED

  • Configuration:

    SINGLE

  • Data Rate-Nom:

    20 MBps

  • Forward Current-Max:

    0.025 A

  • Isolation Voltage-Max:

    3750 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • On-State Current-Max:

    0.025 A

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Response Time-Nom:

    3e-8 ns

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

TLP2368(E(O Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the TLP2368(E) is -40°C to 110°C.
  • To ensure reliable operation in high-temperature environments, it is recommended to derate the device's current and voltage ratings according to the temperature derating curve provided in the datasheet.
  • The recommended soldering temperature is 260°C (max) for 10 seconds (max) when using a soldering iron, and 240°C (peak) for 5 seconds (max) when using a reflow oven.
  • Yes, the TLP2368(E) is designed to operate in humid environments, but it's recommended to follow proper moisture-sensitive device handling and storage procedures to prevent damage.
  • It is recommended to follow proper ESD protection procedures, such as using an ESD wrist strap or mat, and handling the device by the body or pins to prevent damage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLP2368(E(O Overview

Use the download button to access the TLP2368(E(O schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP23, or try a keyword search, such as Optocoupler
