TLP2368(E(T - Toshiba

Description: Toshiba TLP2368(E(T Photo IC Output Photocoupler, Surface Mount, 5-Pin SO6

Download TLP2368(E(T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

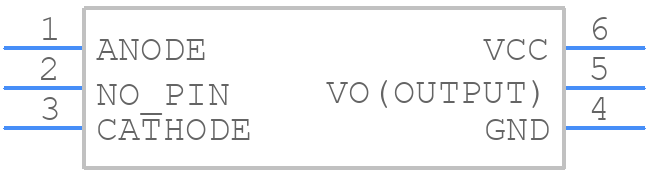

TLP2368(E(T - Toshiba - PCB symbol
click to zoom
PCB Footprints
TLP2368(E(T - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - 11-4L1S
click to zoom
3D Models
TLP2368(E(T - Toshiba - 3D model - Small Outline Packages - 11-4L1S
click to zoom

TLP2368(E(T Details

  • Manufacturer Part Number:

    TLP2368(E(T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-6/5

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    9

  • Additional Feature:

    OPEN COLLECTOR, UL APPROVED

  • Configuration:

    SINGLE

  • Data Rate-Nom:

    20 MBps

  • Forward Current-Max:

    0.025 A

  • Isolation Voltage-Max:

    3750 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • On-State Current-Max:

    0.025 A

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Response Time-Nom:

    3e-8 ns

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

TLP2368(E(T Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the TLP2368(E) is 100 MHz.
  • Yes, the TLP2368(E) can operate in high-temperature applications up to 125°C.
  • Yes, the TLP2368(E) is compatible with both 3.3V and 5V logic levels.
  • The propagation delay of the TLP2368(E) is typically 10 ns.
  • Yes, the TLP2368(E) is suitable for high-speed data transmission applications due to its high bandwidth and low propagation delay.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLP2368(E(T Overview

Use the download button to access the TLP2368(E(T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP23, or try a keyword search, such as Optocoupler
