TLP2368(TPL,E - Toshiba

Description: High Speed Optocouplers Photo-IC 2.7 to 5.5V 125degC 3750 Vrms

Download TLP2368(TPL,E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

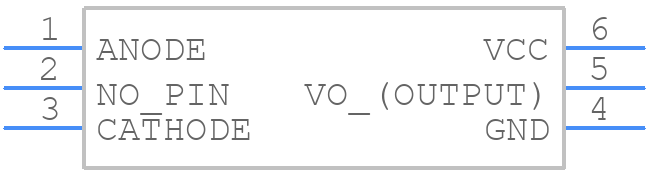

Symbol
TLP2368(TPL,E - Toshiba - PCB symbol
click to zoom
PCB Footprints
TLP2368(TPL,E - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - 11-4L1S
click to zoom
3D Models
TLP2368(TPL,E - Toshiba - 3D model - Small Outline Packages - 11-4L1S
click to zoom

TLP2368(TPL,E Details

  • Manufacturer Part Number:

    TLP2368(TPL,E

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    8

  • Additional Feature:

    UL APPROVED

  • Configuration:

    SINGLE

  • Data Rate-Nom:

    20 MBps

  • Forward Current-Max:

    0.025 A

  • Isolation Voltage-Max:

    3750 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • On-State Current-Max:

    0.025 A

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Packing Method:

    TAPE

  • Response Time-Nom:

    3e-8 ns

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

TLP2368(TPL,E Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the TLP2368 is -40°C to 125°C.
  • To ensure reliable operation in high-temperature environments, it is recommended to follow proper thermal design guidelines, such as providing adequate heat sinking and ensuring good airflow around the device.
  • The maximum current rating for the TLP2368 is 50 mA per channel.
  • The TLP2368 has built-in ESD protection, but it is still recommended to follow proper ESD handling procedures when handling the device, such as using an ESD wrist strap or mat.
  • The TLP2368 is rated for up to 30 V, but it is not recommended to use it in high-voltage applications exceeding 30 V without proper voltage regulation and protection.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLP2368(TPL,E Overview

Use the download button to access the TLP2368(TPL,E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP23, or try a keyword search, such as Optocoupler
