A good PCB layout for the TLP2372 involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 0.1uF decoupling capacitor between the VIN and GND pins.
To ensure proper power-on and power-off of the TLP2372, it's recommended to use a soft-start circuit to limit the inrush current during power-on. Additionally, a power-off circuit can be used to slowly discharge the output capacitor to prevent back-EMF damage.
The TLP2372 is rated for operation in an ambient temperature range of -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures, so it's recommended to operate within a range of 0°C to 85°C for optimal performance.
Yes, the TLP2372 is suitable for use in high-reliability and automotive applications. It meets the requirements of AEC-Q100, a standard for automotive-grade semiconductor devices. However, it's recommended to consult with Toshiba's application engineers to ensure the device meets the specific requirements of your application.
To troubleshoot issues with the TLP2372, start by checking the input voltage, output voltage, and current consumption. Verify that the device is properly powered and that the input and output capacitors are properly sized. If issues persist, consult the datasheet and application notes, or contact Toshiba's technical support team for assistance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLP2372(TPL,E Overview

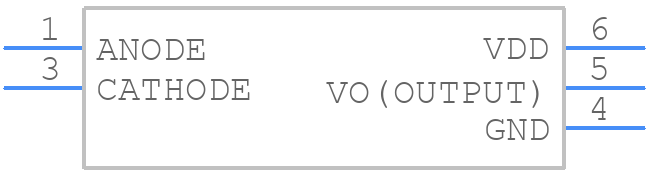

Use the download button to access the TLP2372(TPL,E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP23,
or try a keyword search, such as Optocoupler
