The recommended operating voltage range for the TLP2391(E) is 3.3V to 5.5V.
To ensure reliable communication in noisy environments, use a common-mode choke coil or a ferrite bead in series with the transmission line, and consider using a shielded cable or a twisted pair cable.
The maximum cable length supported by the TLP2391(E) depends on the transmission speed and the type of cable used. As a general guideline, the maximum cable length is approximately 10 meters at 100 Mbps and 50 meters at 10 Mbps.
To handle hot swapping with the TLP2391(E), use a power-on reset circuit to ensure that the device is properly initialized when the power is applied, and consider using a power switch or a load switch to control the power supply to the device.
The TLP2391(E) has a maximum junction temperature of 150°C. Ensure good thermal design and heat dissipation to prevent overheating, especially in high-temperature environments.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLP2391(E(T Overview

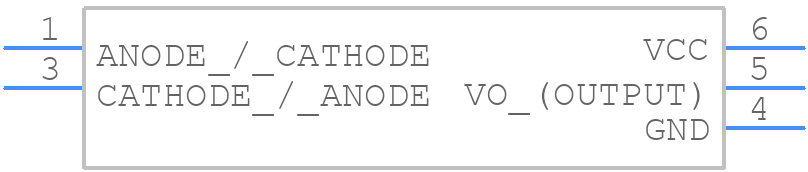

Use the download button to access the TLP2391(E(T schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP23,
or try a keyword search, such as Optocoupler
