Part Image

TLP2391(TPL,E - Toshiba

Description: High Speed Optocouplers Photo-IC 2.7 to 5.5V 125degC 3750 Vrms

Download TLP2391(TPL,E Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this TLP2391(TPL,E model

Email notifications will be applied after download.

Send part feedback

Symbol

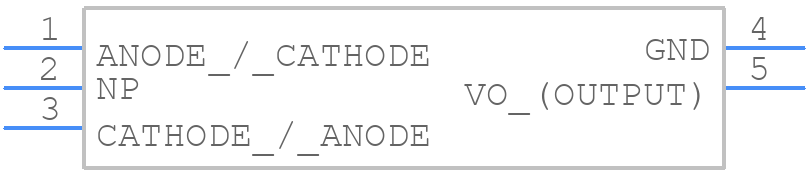

TLP2391(TPL,E - Toshiba - PCB symbol

PCB Footprints

TLP2391(TPL,E - Toshiba PCB footprint - SOT23 (5-Pin) - SOT23 (5-Pin) - 6-SO, 5 Lead

3D Models

TLP2391(TPL,E - Toshiba - 3D model - SOT23 (5-Pin) - 6-SO, 5 Lead

Datasheet Download Datasheet
Stock & Prices Price & Stock for TLP2391(TPL,E
Part Number TLP2391(TPL,E
Manufacturer Toshiba
Pin Count 5
Part Category Phototransistor
Package Category SOT23 (5-Pin)
Footprint Name SOT23 (5-Pin) - 6-SO, 5 Lead
Released Date Oct 3, 2019
Last Modified Date Apr 4, 2025 2:48 PM UTC
Pinout / Pin List Click Here (Member Only)

TLP2391(TPL,E Details

Manufacturer Part Number:
TLP2391(TPL,E
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
SOP-6/5
Reach Compliance Code:
Unknown
Country Of Origin:
Thailand
HTS Code:
8541.40.80.00
Factory Lead Time:
16 Weeks
Date Of Intro:
2020-05-11
Manufacturer:
Toshiba America Electronic Components
YTEOL:
9
Additional Feature:
OPEN COLLECTOR, UL RECOGNIZED
Configuration:
SINGLE
Data Rate-Nom:
10 MBps
Forward Current-Max:
0.01 A
Isolation Voltage-Max:
3750 V
Mounting Feature:
SURFACE MOUNT
Number of Elements:
1
Number of Functions:
1
On-State Current-Max:
0.01 A
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Optoelectronic Device Type:
LOGIC IC OUTPUT OPTOCOUPLER
Packing Method:
TAPE
Response Time-Max:
1e-7 s
Response Time-Nom:
4.3e-8 ns
Supply Voltage-Min:
2.7 V
Surface Mount:
YES

TLP2391(TPL,E Frequently Asked Questions (FAQs)

The recommended operating voltage range for the TLP2391 is 3.3V to 5V.
To ensure reliable operation in high-temperature environments, it is recommended to follow proper thermal design guidelines, such as providing adequate heat sinking and ensuring good airflow around the device.
The TLP2391 supports data transfer rates of up to 100 Mbps.
To minimize EMI, it is recommended to follow proper PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using shielding where necessary.
The maximum cable length supported by the TLP2391 is 10 meters (33 feet) for a single-ended transmission line.

Trust Checks

Community Provided

System Verified

Community Approved

TLP2391(TPL,E Overview

Use the download button to access the TLP2391(TPL,E schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like TLP23, or try a keyword search, such as Optocoupler
