TLP2403(F) - Toshiba

Description: Toshiba, TLP2403(F) DC Input Photo IC Output Optocoupler, Surface Mount, 8-Pin SO8

Download TLP2403(F) Model
Schematic

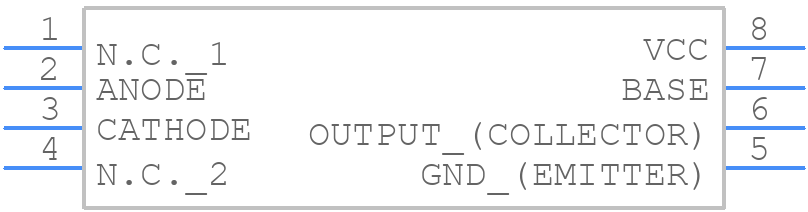

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLP2403(F) - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - 11-5K1S_2022
click to zoom
3D Models
TLP2403(F) - Toshiba  - 3D model - Small Outline Packages - 11-5K1S_2022
click to zoom

TLP2403(F) Details

  • Manufacturer Part Number:

    TLP2403(F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    ROHS COMPLIANT, 11-5K1S, SOP-8

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    3

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.015 A

  • Isolation Voltage-Max:

    3750 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • On-State Current-Max:

    0.06 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.1 W

  • Response Time-Max:

    0.00009 s

  • Response Time-Nom:

    0.000004 ns

  • Supply Voltage-Nom:

    16 V

  • Surface Mount:

    YES

TLP2403(F) Frequently Asked Questions (FAQs)

  • Toshiba recommends a PCB layout with a solid ground plane, short traces, and minimal impedance to ensure high-speed signal integrity and minimize electromagnetic interference (EMI). A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure reliable operation in high-temperature environments, it is essential to follow proper thermal design and management practices. This includes providing adequate heat sinking, using thermal interface materials, and ensuring good airflow around the device. Additionally, derating the device's operating conditions and using thermal protection circuits can help prevent overheating.
  • The TLP2403(F) has built-in ESD protection, but it is still recommended to follow proper ESD handling and protection procedures during assembly and testing. This includes using ESD-safe materials, grounding straps, and ionizers to minimize the risk of ESD damage.
  • Yes, the TLP2403(F) can be used in switching power supply applications, but it is essential to ensure that the device is operated within its recommended specifications and that proper filtering and decoupling are used to minimize electromagnetic interference (EMI) and ensure reliable operation.
  • To troubleshoot issues with the TLP2403(F), start by verifying the device's operating conditions, including voltage, current, and temperature. Use oscilloscopes and logic analyzers to monitor the device's input and output signals, and check for any signs of overheating or electrical overstress. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
