TLP2405(F) - Toshiba

Description: Toshiba TLP2405(F) Photo IC Output Photocoupler, Surface Mount, 8-Pin SO8

Download TLP2405(F) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

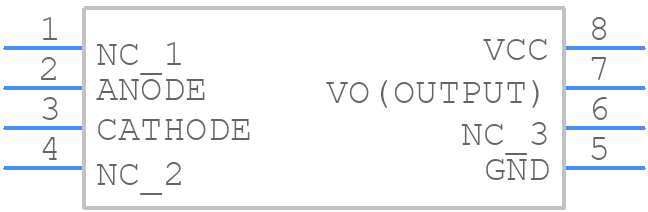

Symbol
TLP2405(F) - Toshiba - PCB symbol
click to zoom
PCB Footprints
TLP2405(F) - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - 11-5K1S_2022
click to zoom
3D Models
TLP2405(F) - Toshiba - 3D model - Small Outline Packages - 11-5K1S_2022
click to zoom

TLP2405(F) Details

  • Manufacturer Part Number:

    TLP2405(F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    SOP-8

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    3

  • Additional Feature:

    OPEN COLLECTOR, UL RECOGNIZED

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.025 A

  • Isolation Voltage-Max:

    3750 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Response Time-Max:

    7.5e-8 s

  • Response Time-Nom:

    3e-8 ns

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

TLP2405(F) Frequently Asked Questions (FAQs)

  • Toshiba recommends a PCB layout with a solid ground plane, short traces, and minimal vias to reduce noise and ensure signal integrity. A 4-layer PCB with a dedicated power plane and a separate ground plane is also recommended.
  • The TLP2405(F) requires a bias voltage of 3.3V to 5V on the VCC pin, and a bias current of 10mA to 20mA on the VCC pin. Ensure that the bias voltage and current are within the recommended range for optimal performance.
  • The TLP2405(F) has an operating temperature range of -40°C to 85°C. However, the device's performance may degrade at temperatures above 70°C, and it's recommended to operate the device within the -20°C to 70°C range for optimal performance.
  • The TLP2405(F) has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures when handling the device. Use an ESD wrist strap or mat, and ensure that the device is stored in an ESD-safe environment.
  • The recommended soldering temperature for the TLP2405(F) is 260°C, and the recommended soldering time is 10 seconds. Ensure that the soldering iron is set to the correct temperature and time to avoid damaging the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLP2405(F) Overview

Use the download button to access the TLP2405(F) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP24, or try a keyword search, such as Optocoupler
