TLP2409(TP,F) - Toshiba

Description: Optocoupler DC-IN 1-CH Transistor With Base DC-OUT 8-Pin SO T/R

Download TLP2409(TP,F) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

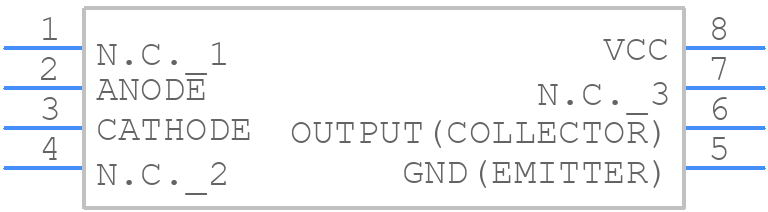

TLP2409(TP,F) - Toshiba - PCB symbol
click to zoom
PCB Footprints
TLP2409(TP,F) - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - 11-5K1S_20022
click to zoom
3D Models
TLP2409(TP,F) - Toshiba - 3D model - Small Outline Packages - 11-5K1S_20022
click to zoom

TLP2409(TP,F) Details

  • Manufacturer Part Number:

    TLP2409(TP,F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    SOP-8

  • ECCN Code:

    3A001.a.2.c

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    3

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Min:

    20%

  • Forward Current-Max:

    0.025 A

  • Forward Voltage-Max:

    1.8 V

  • Isolation Voltage-Max:

    3750 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.1 W

  • Response Time-Max:

    8e-7 s

  • Surface Mount:

    YES

TLP2409(TP,F) Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TLP2409 is 3.3V to 5V, although it can operate from 2.7V to 5.5V.
  • To ensure proper power-on and power-off, it is recommended to use a power-on reset (POR) circuit or a voltage supervisor to monitor the power supply voltage and ensure it reaches the minimum operating voltage before enabling the device.
  • The maximum current rating for the TLP2409's output pins is 25mA per pin, although it is recommended to limit the current to 10mA per pin for reliable operation.
  • The TLP2409 has built-in ESD protection, but it is still recommended to follow proper ESD handling procedures when handling the device, such as using an ESD wrist strap or mat, and storing the device in an anti-static bag or container.
  • The maximum operating temperature range for the TLP2409 is -40°C to 85°C, although it is recommended to operate the device within a temperature range of 0°C to 70°C for optimal performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLP2409(TP,F) Overview

Use the download button to access the TLP2409(TP,F) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP24, or try a keyword search, such as Optocoupler
