TLP250(F) - Toshiba

Description: MOSFET drive opto-isolator,TLP250(F) Toshiba TLP250(F) DC Input Transistor Output Optocoupler, Through Hole, 8-Pin PDIP

Download TLP250(F) Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this TLP250(F) model

Email notifications will be applied after download.

Send part feedback

Symbol

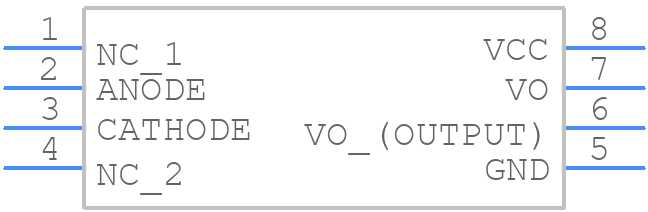

TLP250(F) - Toshiba - PCB symbol

PCB Footprints

TLP250(F) - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 11-10C4 (8PDIP)

3D Models

TLP250(F) - Toshiba - 3D model - Dual-In-Line Packages - 11-10C4 (8PDIP)

Datasheet Download Datasheet
Stock & Prices Price & Stock for TLP250(F)
Part Number TLP250(F)
Manufacturer Toshiba
Pin Count 8
Part Category Integrated Circuit
Package Category Dual-In-Line Packages
Footprint Name Dual-In-Line Packages - 11-10C4 (8PDIP)
Released Date Aug 23, 2016
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

TLP250(F) Details

Manufacturer Part Number:
TLP250(F)
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
DIP-8
Reach Compliance Code:
Unknown
HTS Code:
8541.40.80.00
Manufacturer:
Toshiba America Electronic Components
YTEOL:
0
Additional Feature:
UL RECOGNIZED
Configuration:
COMPLEX
Forward Current-Max:
0.02 A
Isolation Voltage-Max:
2500 V
Mounting Feature:
THROUGH HOLE MOUNT
Number of Elements:
1
Number of Functions:
1
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-20 °C
Optoelectronic Device Type:
LOGIC IC OUTPUT OPTOCOUPLER
Response Time-Max:
5e-7 s
Response Time-Nom:
1.5e-7 ns
Supply Voltage-Min:
15 V
Surface Mount:
NO
Terminal Finish:
Pure Tin (Sn)

TLP250(F) Frequently Asked Questions (FAQs)

The recommended operating voltage range for the TLP250(F) is 4.5V to 30V.
To ensure proper biasing, connect the VCC pin to a stable voltage source, and the GND pin to a reliable ground. Also, ensure that the input signal is within the recommended voltage range.
The TLP250(F) can sink or source up to 50mA of current.
To protect the TLP250(F) from ESD, handle the device by the body, use an anti-static wrist strap, and store the device in an anti-static bag or container.
The maximum operating temperature range for the TLP250(F) is -40°C to 125°C.

Trust Checks

Community Provided

System Verified

Community Approved

TLP250(F) Overview

Use the download button to access the TLP250(F) schematic symbol, PCB footprint, and 3D model.
