TLP250(TP5,F) - Toshiba

Description: PHOTOCOUPLER

Download TLP250(TP5,F) Model

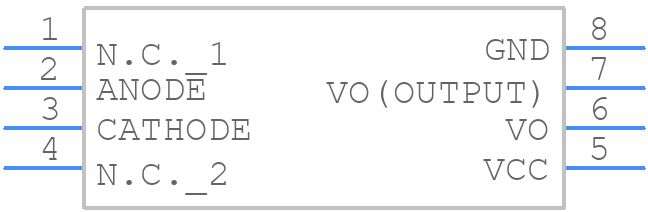

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLP250(TP5,F) - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - TLP250(TP5,F)
click to zoom
3D Models
TLP250(TP5,F) - Toshiba  - 3D model - Dual-In-Line Packages - TLP250(TP5,F)
click to zoom

TLP250(TP5,F) Details

  • Manufacturer Part Number:

    TLP250(TP5,F)

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DIP-8

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    COMPLEX

  • Forward Current-Max:

    0.02 A

  • Isolation Voltage-Max:

    2500 V

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Response Time-Max:

    5e-7 s

  • Response Time-Nom:

    1.5e-7 ns

  • Supply Voltage-Min:

    15 V

  • Surface Mount:

    NO
