TLP250 - Toshiba

Description: MOSFET/IGBT optocouplerTLP250 DIP8n DIP8

Download TLP250 Model
Schematic
symbols

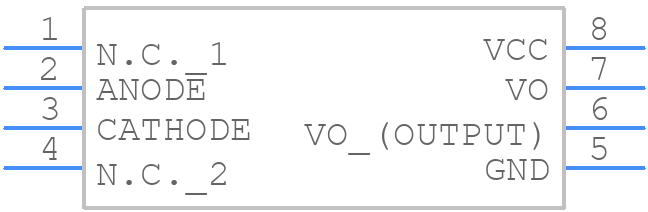

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLP250 - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP8_1
click to zoom

TLP250 Details

  • Manufacturer Part Number:

    TLP250

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    End Of Life

  • Package Description:

    DIP-8

  • HTS Code:

    8541.40.80.00

  • Date Of Intro:

    1994-01-01

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0.4

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.02 A

  • Isolation Voltage-Max:

    2500 V

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Response Time-Max:

    5e-7 s

  • Response Time-Nom:

    1.5e-7 ns

  • Supply Voltage-Min:

    10 V

  • Surface Mount:

    NO
