TLP250H(D4,F) - Toshiba

Description: Toshiba, TLP250H(D4,F) Photo IC Output Optocoupler, Through Hole, 8-Pin DIP

Download TLP250H(D4,F) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

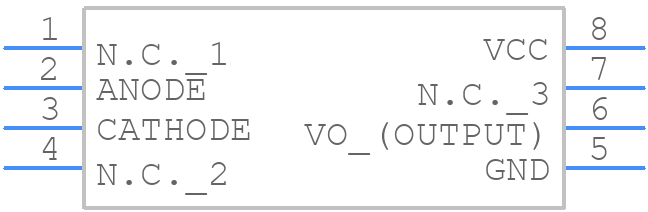

TLP250H(D4,F) - Toshiba - PCB symbol
click to zoom
PCB Footprints
TLP250H(D4,F) - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 11-10C4S (8PDIP)
click to zoom
3D Models
TLP250H(D4,F) - Toshiba - 3D model - Dual-In-Line Packages - 11-10C4S (8PDIP)
click to zoom

TLP250H(D4,F) Details

  • Manufacturer Part Number:

    TLP250H(D4,F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-8

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    7

  • Additional Feature:

    UL APPROVED, VDE APPROVED

  • Configuration:

    COMPLEX

  • Forward Current-Max:

    0.02 A

  • Isolation Voltage-Max:

    3750 V

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Response Time-Nom:

    5e-8 ns

  • Supply Voltage-Min:

    10 V

  • Surface Mount:

    NO

TLP250H(D4,F) Frequently Asked Questions (FAQs)

  • A good PCB layout for the TLP250H involves keeping the input and output traces short and separate, using a ground plane, and placing the device close to the power supply. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure proper biasing, connect the VCC pin to a stable 5V power supply, and the GND pin to a solid ground plane. The input voltage (VIN) should be within the recommended range of 3.5V to 5.5V.
  • The TLP250H can sink up to 50mA and source up to 50mA. However, it's recommended to keep the current within 20mA to ensure reliable operation and minimize power dissipation.
  • Use ESD protection devices such as TVS diodes or ESD arrays on the input and output lines. Additionally, add a voltage regulator or a zener diode to protect against overvoltage conditions.
  • The recommended operating temperature range for the TLP250H is -40°C to 85°C. However, the device can operate up to 125°C with reduced performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLP250H(D4,F) Overview

Use the download button to access the TLP250H(D4,F) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP25, or try a keyword search, such as Optocoupler
