TLP2531(TP1,F) - Toshiba

Description: Toshiba TLP2531(TP1,F) DC Input IC Output Dual Optocoupler, Surface Mount, 8-Pin PDIP SMD

Download TLP2531(TP1,F) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

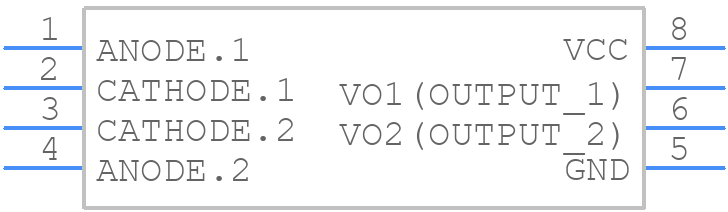

TLP2531(TP1,F) - Toshiba - PCB symbol
click to zoom
PCB Footprints
TLP2531(TP1,F) - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 11-10C4S (8PDIP)
click to zoom
3D Models
TLP2531(TP1,F) - Toshiba - 3D model - Dual-In-Line Packages - 11-10C4S (8PDIP)
click to zoom

TLP2531(TP1,F) Details

  • Manufacturer Part Number:

    TLP2531(TP1,F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    LEAD FREE, DIP-8

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

  • Additional Feature:

    TTL COMPATIBLE, UL RECOGNIZED

  • Configuration:

    SEPARATE, 2 CHANNELS

  • Forward Current-Max:

    0.025 A

  • Isolation Voltage-Max:

    2500 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    2

  • Number of Functions:

    2

  • On-State Current-Max:

    0.008 A

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Packing Method:

    TAPE

  • Response Time-Max:

    8e-7 s

  • Response Time-Nom:

    3e-7 ns

  • Surface Mount:

    YES

TLP2531(TP1,F) Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the TLP2531 involves placing the device close to the optocoupler, using a ground plane to reduce noise, and keeping the input and output traces separate to minimize crosstalk.
  • To ensure reliability in high-temperature applications, it's essential to follow the recommended operating temperature range, use a suitable heat sink, and ensure good thermal conductivity between the device and the PCB.
  • The maximum allowable voltage for the TLP2531's input pin is 5.5V, exceeding which may cause damage to the device.
  • While the TLP2531 is designed to work with Toshiba's TLP521-1 optocoupler, it can be used with other optocouplers that have similar characteristics. However, the performance and reliability may vary, and it's recommended to consult the datasheet and application notes for the specific optocoupler being used.
  • To troubleshoot issues with the TLP2531, check the input voltage, ensure proper connection to the optocoupler, verify the output load is within the recommended range, and check for any noise or interference on the input and output lines.
