TLP2630 footprint, schematic symbol and 3D model by Toshiba

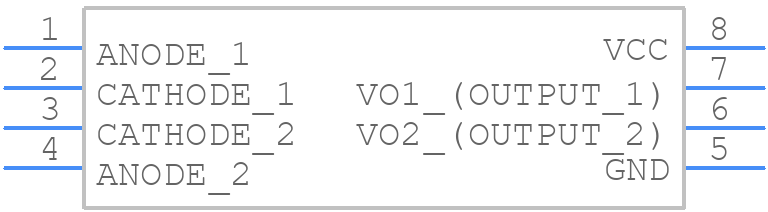

Symbol

PCB Footprints

3D Models

TLP2630 Details

The maximum allowable voltage that can be applied to the input pins is 5V, as exceeding this voltage can cause damage to the internal LED.
To ensure reliable operation in high-temperature environments, it is recommended to derate the current through the LED and ensure good heat dissipation around the device.
The recommended layout and spacing for the TLP2630 on a PCB is to keep the device at least 1.5mm away from other components and to use a ground plane to minimize electromagnetic interference.
Yes, the TLP2630 can be used in high-frequency applications up to 10MHz, but the user should be aware of the device's bandwidth limitations and potential signal distortion.
To protect the TLP2630 from ESD, it is recommended to handle the device with anti-static precautions, such as using an anti-static wrist strap and working on an anti-static mat.

Community Provided

System Verified

Community Approved

Use the download button to access the TLP2630 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like TLP26, or try a keyword search, such as Optocoupler
