A good PCB layout for the TLP2662(F) involves keeping the input and output traces short and separate, using a ground plane, and placing the device close to the optocoupler. Additionally, it's recommended to use a 0.1uF bypass capacitor between VCC and GND.
To ensure reliability in high-temperature applications, it's essential to follow the recommended operating temperature range (up to 125°C) and consider the derating of the device's electrical characteristics. Additionally, ensure good thermal design, such as using a heat sink or thermal pad, to keep the junction temperature within the recommended range.
The maximum allowable voltage for the TLP2662(F) input is 30V, but it's recommended to keep the input voltage below 20V to ensure reliable operation and prevent damage to the device.
Yes, the TLP2662(F) can be used in high-frequency applications up to 100 kHz. However, it's essential to consider the device's propagation delay and rise/fall times to ensure proper operation.
To protect the TLP2662(F) from ESD and surge events, use ESD protection devices, such as TVS diodes or ESD arrays, on the input and output lines. Additionally, consider using a surge protector or a fuse to prevent overvoltage and overcurrent conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLP2662(F) Overview

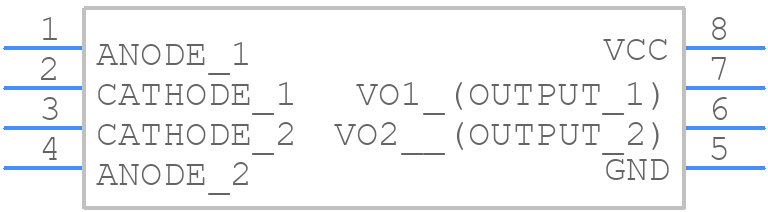

Use the download button to access the TLP2662(F) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP26,
