A good PCB layout for the TLP2662 involves keeping the input and output traces short and separate, using a ground plane, and placing the device close to the optocoupler. A 4-layer PCB with a dedicated ground plane is recommended.
To ensure reliability in high-temperature applications, it's essential to follow the recommended operating temperature range (up to 125°C), use a heat sink if necessary, and ensure good thermal conductivity between the device and the PCB.
The maximum allowable voltage for the TLP2662 is 30V, but it's recommended to operate within the recommended voltage range (10V to 20V) for optimal performance and reliability.
To troubleshoot issues with the TLP2662, check the input voltage, output load, and PCB layout. Verify that the device is properly powered, and the input and output pins are not short-circuited. Use an oscilloscope to monitor the input and output signals.
Yes, the TLP2662 can be used in high-frequency applications up to 100 kHz. However, it's essential to consider the device's propagation delay, rise and fall times, and ensure that the PCB layout is optimized for high-frequency operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLP2662(TP1,F) Overview

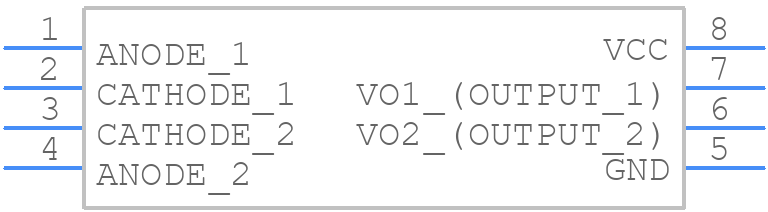

Use the download button to access the TLP2662(TP1,F) schematic symbol, PCB footprint, and 3D model.
