TLP266J(E - Toshiba

Description: Triac & SCR Output Optocouplers Gen Purp 1-Circuit 70mA 600V

Download TLP266J(E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

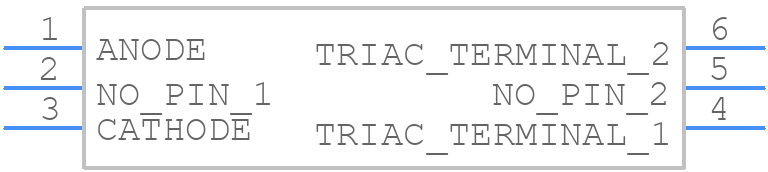

TLP266J(E - Toshiba - PCB symbol
click to zoom
PCB Footprints
TLP266J(E - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - 11-4M1S_1
click to zoom
3D Models
TLP266J(E - Toshiba - 3D model - Small Outline Packages - 11-4M1S_1
click to zoom

TLP266J(E Details

  • Manufacturer Part Number:

    TLP266J(E

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-6/4

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    8

  • Additional Feature:

    UL APPROVED

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.025 A

  • Input Trigger Current-Nom:

    10 mA

  • Isolation Voltage-Max:

    3750 V

  • Number of Elements:

    1

  • On-State Current-Max:

    0.07 A

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Optoelectronic Device Type:

    TRIAC OUTPUT OPTOCOUPLER WITH ZERO CRSVR

  • Peak Off-state Voltage-Min:

    600 V
