TLP267J(TPR,E - Toshiba

Description: Triac & SCR Output Optocouplers Photocoupler Phototriac Output

Download TLP267J(TPR,E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

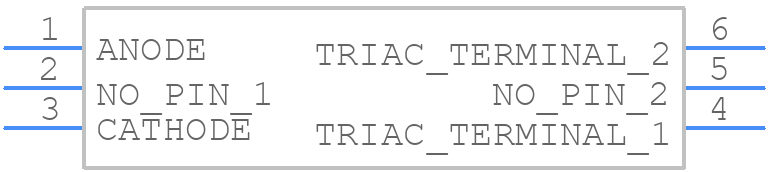

Symbol
TLP267J(TPR,E - Toshiba - PCB symbol
click to zoom
PCB Footprints
TLP267J(TPR,E - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - 11-4M1S_1
click to zoom
3D Models
TLP267J(TPR,E - Toshiba - 3D model - Small Outline Packages - 11-4M1S_1
click to zoom

TLP267J(TPR,E Details

  • Manufacturer Part Number:

    TLP267J(TPR,E

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-4

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    8

  • Additional Feature:

    UL APPROVED

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.0075 A

  • Input Trigger Current-Max:

    0.003 A

  • Isolation Voltage-Max:

    3750 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • On-State Current-Max:

    0.07 A

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Optoelectronic Device Type:

    TRIAC OUTPUT OPTOCOUPLER

  • Packing Method:

    TAPE

  • Peak Off-state Voltage-Min:

    600 V

  • Peak Surge Current:

    1.2 A

  • Repetitive Peak Off-state Voltage:

    600 V

  • Reverse Leakage Current-Max:

    0.00001 A

  • Surface Mount:

    YES

TLP267J(TPR,E Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the TLP267J is -40°C to 125°C.
  • To ensure reliability, it's essential to follow proper thermal design and layout guidelines, including providing adequate heat sinking and minimizing thermal resistance.
  • The maximum allowable voltage for the TLP267J is 30V, but it's recommended to operate within the specified voltage range (5V to 24V) for optimal performance and reliability.
  • Yes, the TLP267J is suitable for high-frequency applications up to 100 kHz, but it's essential to consider the device's switching characteristics and layout to minimize electromagnetic interference (EMI).
  • To prevent electrostatic discharge (ESD) damage, handle the TLP267J with anti-static precautions, such as using an anti-static wrist strap, mat, or workstation, and follow proper handling and storage procedures.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLP267J(TPR,E Overview

Use the download button to access the TLP267J(TPR,E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP26, or try a keyword search, such as Optocoupler
