TLP268J(E(T - Toshiba

Description: Toshiba TLP268J(E(T Phototriac Output Photocoupler, Surface Mount, 4-Pin SO6

Download TLP268J(E(T Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this TLP268J(E(T model

Email notifications will be applied after download.

Send part feedback

Symbol

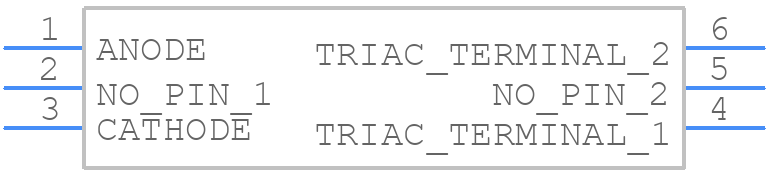

TLP268J(E(T - Toshiba - PCB symbol

PCB Footprints

TLP268J(E(T - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - 11-4M1S_1

3D Models

TLP268J(E(T - Toshiba - 3D model - Small Outline Packages - 11-4M1S_1

Datasheet Download Datasheet
Stock & Prices Price & Stock for TLP268J(E(T
Part Number TLP268J(E(T
Manufacturer Toshiba
Pin Count 6
Part Category Phototransistor
Package Category Small Outline Packages
Footprint Name Small Outline Packages - 11-4M1S_1
Released Date Apr 13, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

TLP268J(E(T Details

Manufacturer Part Number:
TLP268J(E(T
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
SOP-4
HTS Code:
8541.40.80.00
Manufacturer:
Toshiba America Electronic Components
YTEOL:
8
Additional Feature:
UL APPROVED
Configuration:
SINGLE
Forward Current-Max:
0.0075 A
Input Trigger Current-Max:
0.003 A
Isolation Voltage-Max:
3750 V
Mounting Feature:
SURFACE MOUNT
Number of Elements:
1
On-State Current-Max:
0.07 A
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-25 °C
Optoelectronic Device Type:
TRIAC OUTPUT OPTOCOUPLER WITH ZERO CRSVR
Peak Off-state Voltage-Min:
600 V
Peak Surge Current:
1.2 A
Repetitive Peak Off-state Voltage:
600 V
Reverse Leakage Current-Max:
0.00001 A
Surface Mount:
YES

TLP268J(E(T Frequently Asked Questions (FAQs)

The maximum operating temperature range for the TLP268J(E) is -40°C to 110°C.
Yes, the TLP268J(E) is suitable for high-speed applications, with a rise time of 10 ns and a fall time of 15 ns.
The minimum creepage distance required for the TLP268J(E) is 5 mm, but it's recommended to maintain a minimum of 8 mm for safety and reliability.
Yes, the TLP268J(E) can be used in high-voltage applications, with a maximum isolation voltage of 5000 Vrms.
Yes, the TLP268J(E) is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.

Trust Checks

Community Provided

System Verified

Community Approved

TLP268J(E(T Overview

Use the download button to access the TLP268J(E(T schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like TLP26, or try a keyword search, such as Optocoupler
