- Part Number TLP2710(TP,E
- Manufacturer Toshiba
- Pin Count 6
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - TLP2704
- Released Date Oct 2, 2022
- Last Modified Date Apr 4, 2025 2:48 PM UTC
- Pinout / Pin List Click Here (Member Only)
TLP2710(TP,E Details
-
Manufacturer Part Number:
TLP2710(TP,E
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Thailand
-
HTS Code:
8541.40.80.00
-
Factory Lead Time:
14 Weeks
-
Manufacturer:
Toshiba America Electronic Components
-
YTEOL:
9
-
Additional Feature:
UL APPROVED
-
Configuration:
SINGLE
-
Data Rate-Nom:
5 MBps
TLP2710(TP,E Frequently Asked Questions (FAQs)
-
The recommended operating voltage range for the TLP2710 is 4.5V to 5.5V.
-
To ensure proper biasing, connect the VCC pin to a stable 5V power supply, and decouple it with a 0.1uF capacitor to ground. Also, ensure the input voltage (VIN) is within the recommended range.
-
The TLP2710 can sink or source up to 15mA of current per channel.
-
To protect the TLP2710 from ESD, handle the device by the body, use an anti-static wrist strap or mat, and store the device in an anti-static bag or container.
-
The TLP2710 is rated for operation up to 85°C. However, it's recommended to derate the device's performance and consider thermal management for high-temperature applications.
Trust Checks
Community Provided
System Verified
Community Approved
TLP2710(TP,E Overview

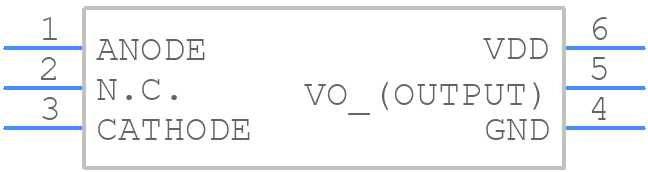

Use the download button to access the TLP2710(TP,E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP27,
or try a keyword search, such as Optocoupler
