TLP2761(TP,E(T - Toshiba

Description: OPTOCPLR, DIGITAL, 15MBPS, 5KV, SOP-6

Download TLP2761(TP,E(T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

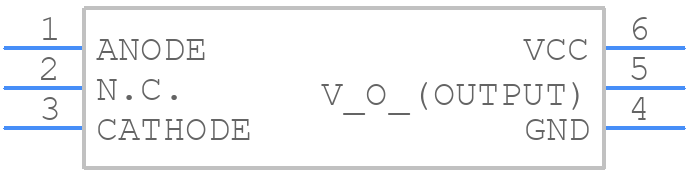

TLP2761(TP,E(T - Toshiba - PCB symbol
click to zoom
PCB Footprints
TLP2761(TP,E(T - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - TLP2761(TP,E(T
click to zoom
3D Models
TLP2761(TP,E(T - Toshiba - 3D model - Small Outline Packages - TLP2761(TP,E(T
click to zoom

TLP2761(TP,E(T Details

  • Manufacturer Part Number:

    TLP2761(TP,E(T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-6

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    9

  • Additional Feature:

    UL APPROVED

  • Configuration:

    SINGLE

  • Data Rate-Nom:

    15 MBps

  • Forward Current-Max:

    0.01 A

  • Isolation Voltage-Max:

    5000 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • On-State Current-Max:

    0.01 A

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Packing Method:

    TR, EMBOSSED PLASTIC, 13 INCH

  • Response Time-Nom:

    3e-9 ns

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

TLP2761(TP,E(T Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the TLP2761 is -40°C to 125°C.
  • To ensure reliable operation in high-temperature environments, it is recommended to derate the device's power dissipation according to the thermal derating curve provided in the datasheet.
  • To minimize EMI, it is recommended to use a multi-layer PCB with a solid ground plane, keep the signal traces short and away from the edges of the board, and use a shielded cable for the output signal.
  • Yes, the TLP2761 is suitable for high-speed data transmission applications, with a maximum data transfer rate of 100 Mbps.
  • To protect the TLP2761 from ESD, it is recommended to handle the device with an anti-static wrist strap or mat, and to use ESD-protected packaging and storage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLP2761(TP,E(T Overview

Use the download button to access the TLP2761(TP,E(T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP27, or try a keyword search, such as Optocoupler
