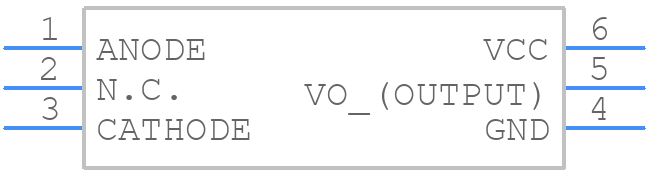

TLP2768(F) - Toshiba

TLP2768(F) Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal performance of the TLP2768(F)?
  Toshiba provides a recommended PCB layout in the application note 'TLP2768(F) PCB Layout Considerations' which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
• How do I ensure the TLP2768(F) is properly biased for reliable operation?
  The TLP2768(F) requires a stable power supply voltage (VCC) and a bias voltage (VBIAS) to operate reliably. Ensure that VCC is within the recommended range (4.5V to 5.5V) and VBIAS is set to the recommended value (typically 2.5V) using a voltage divider or a dedicated bias voltage generator.
• What is the maximum allowable current through the output pins of the TLP2768(F)?
  The maximum allowable current through the output pins of the TLP2768(F) is 50mA per pin. Exceeding this limit may cause damage to the device or affect its reliability.
• How do I handle the thermal management of the TLP2768(F) in my design?
  The TLP2768(F) has a maximum junction temperature (TJ) of 150°C. Ensure good thermal conductivity between the device and the PCB by using thermal vias, thermal pads, and a heat sink if necessary. Also, follow the recommended thermal design guidelines in the datasheet to prevent overheating.
• Are there any specific ESD protection considerations for the TLP2768(F)?
  Yes, the TLP2768(F) is sensitive to electrostatic discharge (ESD). Ensure that the device is handled and stored in an ESD-safe environment, and consider adding ESD protection devices (such as TVS diodes) to the input and output pins to prevent damage from ESD events.
