Toshiba recommends a PCB layout with a solid ground plane, short traces, and minimal vias to reduce noise and ensure signal integrity. A 4-layer PCB with a dedicated power plane and a separate ground plane is recommended.
To ensure reliable operation in high-temperature environments, it is recommended to follow proper thermal design guidelines, such as providing adequate heat sinking, using thermal interface materials, and keeping the junction temperature below 125°C.
The maximum allowable voltage on the VCC pin is 7V, although the recommended operating voltage is 5V ± 10%. Exceeding this voltage may cause damage to the device.
To handle ESD protection, it is recommended to follow proper ESD handling procedures, such as using an ESD wrist strap or mat, and ensuring that the device is stored in an ESD-protected environment. Additionally, the TLP2768A has built-in ESD protection, but it is still important to follow proper handling procedures.
The recommended clock frequency for the TLP2768A is up to 100 MHz, although the device can operate at frequencies up to 150 MHz. However, operating at higher frequencies may require additional signal conditioning and noise reduction measures.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLP2768A Overview

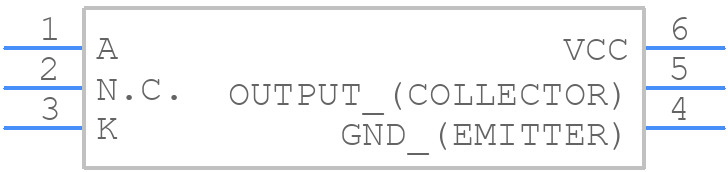

Use the download button to access the TLP2768A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP27,
or try a keyword search, such as Optocoupler
