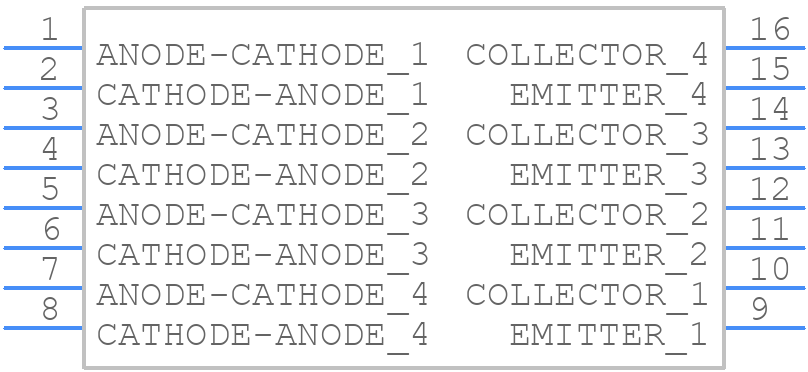

Symbol
TLP280-4(GB) - Toshiba - PCB symbol
click to zoom
PCB Footprints
TLP280-4(GB) - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - TLP280-4(GB,J,F)
click to zoom
3D Models
TLP280-4(GB) - Toshiba - 3D model - Small Outline Packages - TLP280-4(GB,J,F)
click to zoom

TLP280-4(GB) Details

  • Manufacturer Part Number:

    TLP280-4(GB)

  • Part Life Cycle Code:

    Obsolete

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

  • Additional Feature:

    UL RECOGNIZED

  • Coll-Emtr Bkdn Voltage-Min:

    80 V

  • Configuration:

    SEPARATE, 4 CHANNELS

  • Current Transfer Ratio-Min:

    100%

  • Dark Current-Max:

    100 nA

  • Forward Current-Max:

    0.05 A

  • Forward Voltage-Max:

    1.3 V

  • Isolation Voltage-Max:

    2500 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    4

  • On-State Current-Max:

    0.05 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Optoelectronic Device Type:

    AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.17 W

  • Response Time-Max:

    0.000002 s

  • Surface Mount:

    YES

TLP280-4(GB) Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the TLP280-4(GB) is -40°C to 85°C.
  • Yes, the TLP280-4(GB) is designed to operate in a humid environment, but it's recommended to follow proper handling and storage procedures to prevent moisture-related issues.
  • The maximum allowable voltage for the input pins is 5.5V, which is the absolute maximum rating. However, it's recommended to keep the input voltage within the recommended operating range of 4.5V to 5.5V for reliable operation.
  • Follow the recommended soldering temperature and time profiles, and ensure the PCB is designed with a suitable thermal pad and land pattern to facilitate good heat dissipation and mechanical stability.
  • The TLP280-4(GB) is designed for general-purpose optocoupler applications, but it can be used in high-frequency applications up to 10 MHz. However, it's essential to consider the device's bandwidth, rise time, and fall time when designing the circuit.
