TLP290-4(E footprint, schematic symbol and 3D model by Toshiba

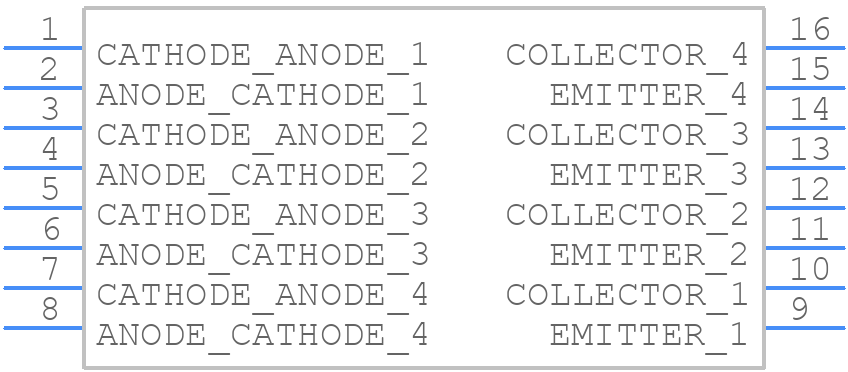

Symbol

PCB Footprints

3D Models

TLP290-4(E Details

The recommended operating voltage range for the TLP290-4(E) is 3.3V to 5V.
To ensure proper biasing, connect the VCC pin to a stable voltage source, and the GND pin to a solid ground. Also, ensure that the input voltage is within the recommended operating range.
The TLP290-4(E) can sink or source up to 50mA of current per channel.
To protect the TLP290-4(E) from ESD, handle the device by the body, use an anti-static wrist strap, and store the device in an anti-static bag or container.
The TLP290-4(E) can operate safely within a temperature range of -40°C to 85°C.

Community Provided

System Verified

Community Approved

Use the download button to access the TLP290-4(E schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like TLP29, or try a keyword search, such as Optocoupler
