TLP290-4 - Toshiba

Description: Input Transistor Output Quad Optocoupler, Surface Mount, 16-pin SOIC

Download TLP290-4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

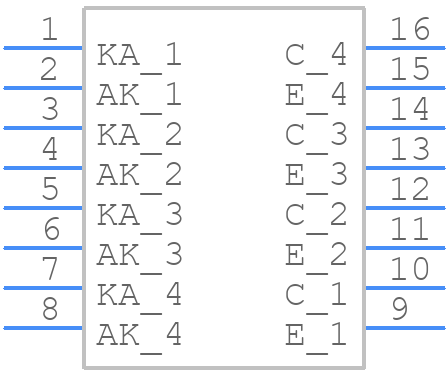

Symbol
TLP290-4 - Toshiba - PCB symbol
click to zoom
PCB Footprints
TLP290-4 - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - 11-11F1
click to zoom
3D Models
TLP290-4 - Toshiba - 3D model - Small Outline Packages - 11-11F1
click to zoom

TLP290-4 Details

  • Manufacturer Part Number:

    TLP290-4

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-16

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    8

  • Additional Feature:

    UL RECOGNIZED

  • Coll-Emtr Bkdn Voltage-Min:

    80 V

  • Configuration:

    SEPARATE, 4 CHANNELS

  • Current Transfer Ratio-Min:

    50%

  • Dark Current-Max:

    100 nA

  • Forward Current-Max:

    0.05 A

  • Forward Voltage-Max:

    1.4 V

  • Isolation Voltage-Max:

    2500 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    4

  • On-State Current-Max:

    0.05 A

  • Operating Temperature-Max:

    110 °C

  • Operating Temperature-Min:

    -55 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.1 W

  • Response Time-Max:

    0.000002 s

  • Surface Mount:

    YES

TLP290-4 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the TLP290-4 is -40°C to 100°C.
  • Yes, the TLP290-4 has a high-speed response time of 1 μs, making it suitable for high-speed applications.
  • The minimum creepage distance required for the TLP290-4 is 4.5 mm, which is the distance between the input and output pins.
  • Yes, the TLP290-4 has a high isolation voltage of 5000 Vrms, making it suitable for high-voltage applications.
  • Yes, the TLP290-4 is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, and cadmium.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLP290-4 Overview

Use the download button to access the TLP290-4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP29, or try a keyword search, such as Optocoupler
