TLP292-4(E(T - Toshiba

Description: Toshiba TLP292-4(E(T AC Input Phototransistor Output Photocoupler, Surface Mount, 16-Pin SO16

Download TLP292-4(E(T Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this TLP292-4(E(T model

Email notifications will be applied after download.

Send part feedback

Symbol

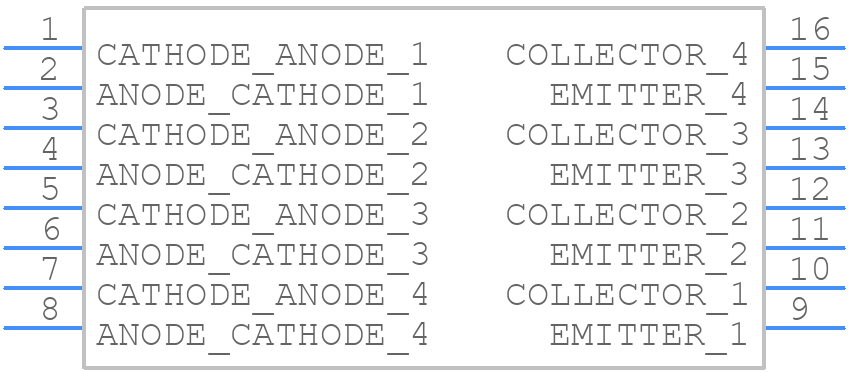

TLP292-4(E(T - Toshiba - PCB symbol

PCB Footprints

TLP292-4(E(T - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - 11-11F1

3D Models

TLP292-4(E(T - Toshiba - 3D model - Small Outline Packages - 11-11F1

Datasheet Download Datasheet
Stock & Prices Price & Stock for TLP292-4(E(T
Part Number TLP292-4(E(T
Manufacturer Toshiba
Pin Count 16
Part Category Phototransistor
Package Category Small Outline Packages
Footprint Name Small Outline Packages - 11-11F1
Released Date Apr 11, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

TLP292-4(E(T Details

Manufacturer Part Number:
TLP292-4(E(T
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
SOP-16
ECCN Code:
3A001.a.2.c
HTS Code:
8541.40.80.00
Manufacturer:
Toshiba America Electronic Components
YTEOL:
8
Additional Feature:
UL RECOGNIZED
Coll-Emtr Bkdn Voltage-Min:
80 V
Configuration:
SEPARATE, 4 CHANNELS
Current Transfer Ratio-Min:
50%
Dark Current-Max:
80 nA
Forward Current-Max:
0.05 A
Forward Voltage-Max:
1.4 V
Isolation Voltage-Max:
3750 V
Mounting Feature:
SURFACE MOUNT
Number of Elements:
4
On-State Current-Max:
0.05 A
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Optoelectronic Device Type:
AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER
Power Dissipation-Max:
0.17 W
Response Time-Max:
0.000002 s
Surface Mount:
YES

TLP292-4(E(T Frequently Asked Questions (FAQs)

The recommended operating temperature range for the TLP292-4(E) is -40°C to 85°C.
To ensure optimal reliability, handle the TLP292-4(E) by the body, avoid touching the leads or glass, and use an anti-static wrist strap or mat to prevent electrostatic discharge.
The maximum allowable reverse voltage for the TLP292-4(E) is 5V.
Store the TLP292-4(E) in a dry, dark place at room temperature (20°C to 30°C) and humidity below 60% to ensure long-term reliability.
While the TLP292-4(E) can operate in humid environments, it's recommended to use a moisture-resistant coating or conformal coating to prevent moisture ingress and ensure reliability.

Trust Checks

Community Provided

System Verified

Community Approved

TLP292-4(E(T Overview

Use the download button to access the TLP292-4(E(T schematic symbol, PCB footprint, and 3D model.
