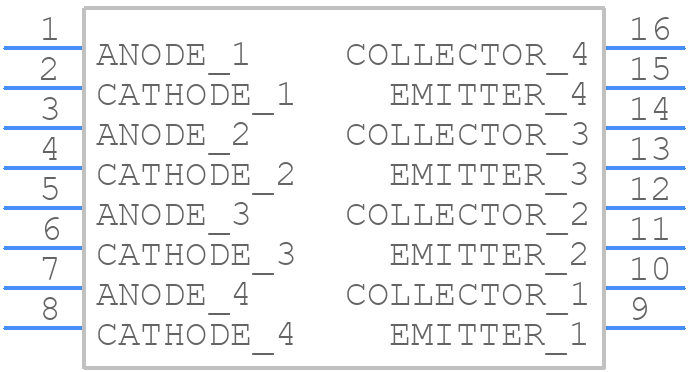

TLP293-4 - Toshiba

TLP293-4 Frequently Asked Questions (FAQs)

• What is the maximum operating temperature range for the TLP293-4?
  The TLP293-4 can operate from -40°C to 100°C, but the maximum junction temperature is 125°C.
• How do I ensure the TLP293-4 is properly biased for reliable operation?
  The TLP293-4 requires a minimum forward current of 1mA and a maximum forward voltage of 1.4V for the LED to ensure reliable operation. Additionally, the output transistor should be biased with a pull-up resistor to VCC.
• What is the maximum data rate that can be achieved with the TLP293-4?
  The TLP293-4 has a typical propagation delay of 10μs and a maximum data rate of 10kbps. However, this can vary depending on the specific application and circuit design.
• Is the TLP293-4 suitable for high-voltage applications?
  The TLP293-4 has a maximum isolation voltage of 5000Vrms, making it suitable for high-voltage applications such as power supplies, motor control, and industrial automation.
• Can the TLP293-4 be used in high-temperature applications such as automotive or aerospace?
  While the TLP293-4 can operate up to 100°C, it is not designed for high-reliability applications such as automotive or aerospace. For these applications, consider using a more ruggedized optocoupler with a higher temperature rating and more stringent testing and qualification.
