A good PCB layout practice for the TLP2955 is to keep the input and output circuits separate, use a ground plane, and minimize the loop area of the signal traces to reduce EMI. Additionally, placing a 0.1uF bypass capacitor between VCC and GND near the device can help reduce noise.
To ensure reliability in high-temperature applications, it's essential to follow the recommended operating temperature range (up to 110°C) and derate the device's current and voltage ratings accordingly. Also, consider using a heat sink or thermal pad to dissipate heat, and ensure good airflow around the device.
The maximum allowable voltage across the input pins of the TLP2955 is ±5 kV, which is the maximum rating for the device's internal LED. Exceeding this voltage can damage the device.
The TLP2955 is suitable for high-frequency applications up to 1 MHz. However, the device's bandwidth and rise/fall times may limit its performance at higher frequencies. It's essential to evaluate the device's performance in your specific application and consider using a faster optocoupler if necessary.
To choose the correct current-limiting resistor for the TLP2955, calculate the resistor value based on the desired input current, voltage, and the device's forward voltage drop (Vf). A general rule of thumb is to use a resistor value that limits the input current to 10-20 mA.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLP2955 Overview

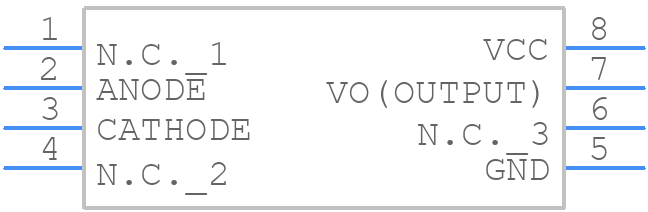

Use the download button to access the TLP2955 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP29,
or try a keyword search, such as Optocoupler
