TLP2955F - Toshiba

Description: TOSHIBA - TLP2955F - Optocoupler, Digital Output, 1 Channel, 5 kV, 5 Mbps, DIP, 8 Pins, TLP295

Download TLP2955F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

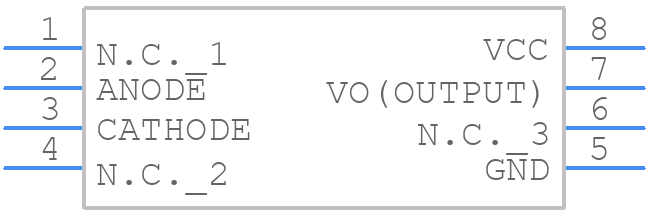

TLP2955F - Toshiba - PCB symbol
click to zoom
PCB Footprints
TLP2955F - Toshiba PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 11-10C402S
click to zoom
3D Models
TLP2955F - Toshiba - 3D model - Dual-In-Line Packages - 11-10C402S
click to zoom

TLP2955F Details

  • Manufacturer Part Number:

    TLP2955F

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DIP-8

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

  • Additional Feature:

    UL APPROVED

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.025 A

  • Isolation Voltage-Max:

    5000 V

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.1 W

  • Response Time-Max:

    7.5e-8 s

  • Response Time-Nom:

    1.6e-8 ns

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    20 V

  • Surface Mount:

    NO

TLP2955F Frequently Asked Questions (FAQs)

  • A good PCB layout for the TLP2955F involves keeping the input and output traces short and separate, using a ground plane, and placing a 0.1uF bypass capacitor close to the VCC pin. Additionally, the photodiode and output transistor should be placed close together to minimize parasitic inductance.
  • The TLP2955F requires a bias voltage of 4.5V to 5.5V on the VCC pin. A 5V power supply is recommended, and a 0.1uF bypass capacitor should be placed close to the VCC pin to filter out noise. The input pin should be biased at a voltage between 0V and VCC, depending on the application.
  • The maximum allowable current through the output transistor of the TLP2955F is 50mA. Exceeding this current may cause the device to overheat or fail. It's recommended to use a current-limiting resistor or other protection circuitry to prevent excessive current flow.
  • The TLP2955F has built-in ESD protection, but it's still important to follow proper ESD handling procedures when working with the device. This includes using an ESD wrist strap or mat, handling the device by the body rather than the leads, and storing the device in an anti-static bag or container.
  • The recommended operating temperature range for the TLP2955F is -40°C to 85°C. Operating the device outside of this range may affect its performance or reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLP2955F Overview

Use the download button to access the TLP2955F schematic symbol, PCB footprint, and 3D model.
