Toshiba recommends a PCB layout with a solid ground plane, short traces, and minimal vias to reduce noise and ensure signal integrity. A 4-layer PCB with a dedicated power plane and a separate ground plane is recommended.
To ensure reliable operation in high-temperature environments, it is recommended to follow proper thermal design guidelines, such as providing adequate heat sinking, using thermal interface materials, and ensuring good airflow around the device.
The maximum allowable voltage on the VCC pin is 7V, although the recommended operating voltage is 5V. Exceeding this voltage may damage the device.
Yes, the TLP3063 can operate with a 3.3V power supply, but the output voltage will be limited to 3.3V. The device's performance may also be affected at lower supply voltages.
To troubleshoot issues with the TLP3063, check the power supply voltage, output load, and PCB layout. Ensure that the device is properly decoupled, and that the output capacitor is of sufficient value and type. Also, check for any signs of overheating or electrical overstress.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLP3063(D4-LF2) Overview

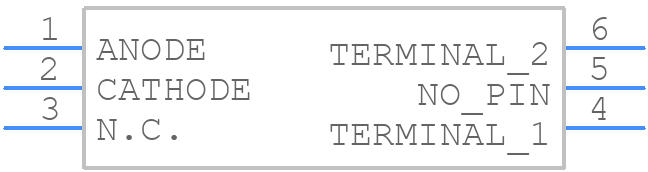

Use the download button to access the TLP3063(D4-LF2) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP30,
or try a keyword search, such as Optocoupler
