The recommended PCB layout for the TLP3083F involves placing the device close to the photodiode, using a ground plane to reduce noise, and keeping the input and output traces separate to minimize crosstalk. Additionally, it's recommended to use a 0.1uF bypass capacitor between VCC and GND pins to filter out noise.
To ensure proper biasing, the TLP3083F requires a supply voltage (VCC) between 4.5V and 5.5V, and a bias resistor (RBIAS) between 1kΩ and 10kΩ. The RBIAS value should be chosen based on the specific application's requirements, and the device should be operated within the recommended operating temperature range.
The maximum allowable voltage on the input pins of the TLP3083F is 5.5V. Exceeding this voltage may damage the device. It's recommended to use a voltage limiter or a clamp circuit to protect the input pins from overvoltage conditions.
The TLP3083F has built-in ESD protection, but it's still recommended to take precautions during handling and assembly. Use an ESD wrist strap or mat, and avoid touching the device's pins or exposed pads. Additionally, consider adding external ESD protection devices, such as TVS diodes, to the PCB design.
The typical rise and fall time of the TLP3083F output signal is around 10ns to 20ns, depending on the load capacitance and the output current. However, this value can vary depending on the specific application and operating conditions.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLP3083F(D4,TP4F Overview

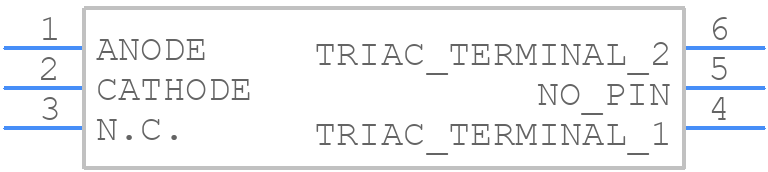

Use the download button to access the TLP3083F(D4,TP4F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP30,
or try a keyword search, such as Optocoupler
