The recommended PCB layout for the TLP3083F involves placing the device close to the photodiode, using a ground plane to reduce noise, and keeping the input and output traces separate to minimize crosstalk. Additionally, it is recommended to use a 0.1uF bypass capacitor between the VCC pin and GND to filter out noise.
To ensure proper biasing, the TLP3083F requires a supply voltage (VCC) between 4.5V and 5.5V, and a bias resistor (RBIAS) between 1kΩ and 10kΩ. The RBIAS resistor sets the internal bias current, which affects the device's sensitivity and speed. A higher RBIAS value reduces the bias current, resulting in lower power consumption but slower response time.
The TLP3083F is rated for operation between -40°C and 85°C. However, the device's performance may degrade at extreme temperatures, and the maximum junction temperature (TJ) should not exceed 150°C to prevent damage.
The TLP3083F has built-in ESD protection, but it is still recommended to follow proper ESD handling procedures when handling the device. This includes using an ESD wrist strap, ESD mat, or ESD bag, and avoiding direct contact with the device's pins.
The TLP3083F should be stored in a dry, cool place, away from direct sunlight and moisture. The recommended storage temperature range is between -40°C and 30°C, and the relative humidity should be below 60%. It is also recommended to store the device in its original packaging or an anti-static bag to prevent damage.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLP3083F(TP4,F Overview

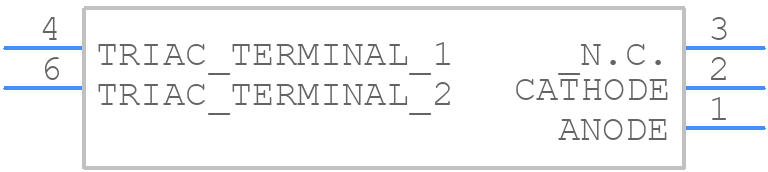

Use the download button to access the TLP3083F(TP4,F schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP30,
or try a keyword search, such as Optocoupler
