TLP3407SRA4(TP,E - Toshiba

Description: MOSFET Output Optocouplers Photorelay; Low CR; High Temp; 4-Ch

Download TLP3407SRA4(TP,E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

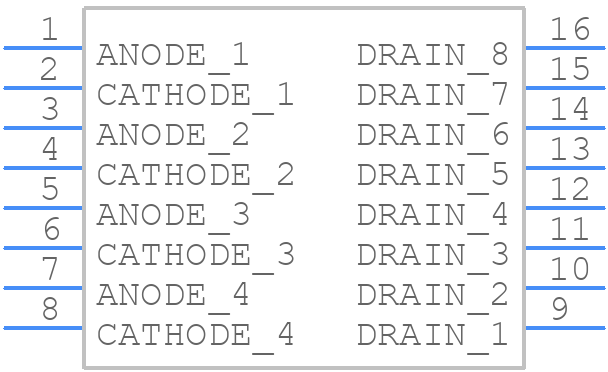

TLP3407SRA4(TP,E - Toshiba - PCB symbol
click to zoom
PCB Footprints
TLP3407SRA4(TP,E - Toshiba PCB footprint - Other - Other - 11-6C1A-2022
click to zoom
3D Models
TLP3407SRA4(TP,E - Toshiba - 3D model - Other - 11-6C1A-2022
click to zoom

TLP3407SRA4(TP,E Details

  • Manufacturer Part Number:

    TLP3407SRA4(TP,E

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    S-VSON16T, 16 PIN

  • HTS Code:

    8541.40.95.00

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    6

  • Configuration:

    SEPARATE, 4 ELEMENTS WITH BUILT-IN DIODE

  • Control Current:

    0.00054 A

  • Control Voltage:

    3.3 V

  • Forward Current-Max:

    0.00054 A

  • Input Type:

    DC

  • Isolation Voltage-Max:

    300 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    4

  • On-State Current-Max:

    0.6 A

  • On-state Resistance-Max:

    0.3 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT SSR

  • Output Circuit Type:

    MOSFET

  • Overall Height:

    1.3 mm

  • Overall Length:

    6.25 mm

  • Packing Method:

    TAPE

  • Surface Mount:

    YES

TLP3407SRA4(TP,E Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TLP3407SRA4(TP,E) is 3.3V to 5.5V.
  • To ensure reliability in high-temperature applications, it is recommended to follow the recommended operating temperature range of -40°C to 125°C, and to consider the derating of the device's electrical characteristics at higher temperatures.
  • The maximum current rating for the TLP3407SRA4(TP,E) is 100mA per channel.
  • The TLP3407SRA4(TP,E) has built-in ESD protection, but it is still recommended to follow proper ESD handling procedures during assembly and handling to prevent damage to the device.
  • The typical propagation delay for the TLP3407SRA4(TP,E) is 10ns.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLP3407SRA4(TP,E Overview

Use the download button to access the TLP3407SRA4(TP,E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP34, or try a keyword search, such as Solid State Relays
