TLP350(TP5,F) - Toshiba

Description: Toshiba TLP350(TP5,F) DC Input Dual Optocoupler, Surface Mount, 8-Pin PDIP

Download TLP350(TP5,F) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

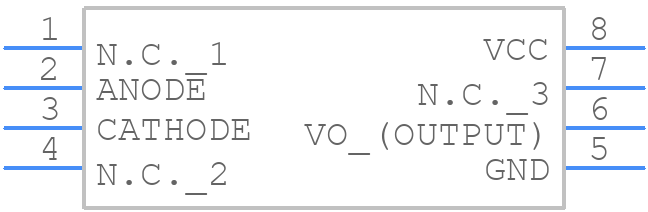

Symbol
TLP350(TP5,F) - Toshiba - PCB symbol
click to zoom
PCB Footprints
TLP350(TP5,F) - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - 11-10C405S
click to zoom
3D Models
TLP350(TP5,F) - Toshiba - 3D model - Small Outline Packages - 11-10C405S
click to zoom

TLP350(TP5,F) Details

  • Manufacturer Part Number:

    TLP350(TP5,F)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DIP-8

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

  • Additional Feature:

    UL APPROVED

  • Configuration:

    COMPLEX

  • Forward Current-Max:

    0.02 A

  • Isolation Voltage-Max:

    3750 V

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Packing Method:

    TAPE

  • Response Time-Max:

    5e-7 s

  • Response Time-Nom:

    1.5e-7 ns

  • Supply Voltage-Min:

    15 V

  • Supply Voltage-Nom:

    30 V

  • Surface Mount:

    NO

TLP350(TP5,F) Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TLP350 is 4.5V to 30V.
  • To ensure proper biasing, connect the VCC pin to a stable voltage source, and the GND pin to a reliable ground. Also, ensure that the input signal is within the recommended voltage range.
  • The TLP350 can handle a maximum current of 100mA.
  • To protect the TLP350 from ESD, handle the device by the body, use an anti-static wrist strap, and store the device in an anti-static bag or container.
  • The typical propagation delay time for the TLP350 is 10ns.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLP350(TP5,F) Overview

Use the download button to access the TLP350(TP5,F) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLP35, or try a keyword search, such as Optocoupler
